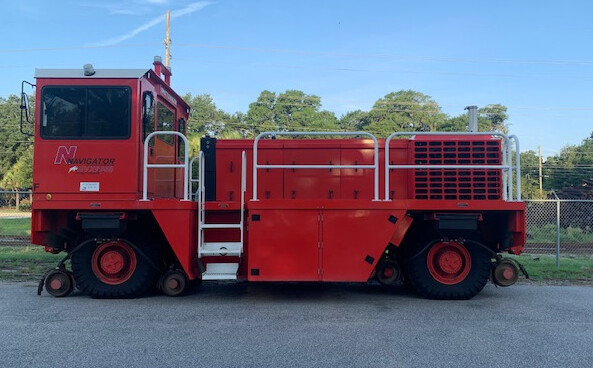

almost new 2021 NVX 9060 Shuttlewagon

The NVX 9060 is the largest model in the world with a 85,000 pound drawbar pull

This 2021 model is almost new with just over 1000 hours and a significant savings over a new model

Leasing services are available

Model Diesel engine model QSX 15L (electronic) EPA Tier 4 Final Horsepower 625 HP @ 1800 RPM. Up to 800 HP utilizing electric boost. Torque 2050 @ 1400 RPM Cooling Charge air cooler across the top, engine radiator in the middle, and transmission oil cooler across the bottom. (engine temp controlled, reversing hydraulic driven fan). Exhaust DPF/DOC combo unit with SCR, decomposition reaction tube, selective catalyst reduction mounted in a “switchback” orientation.

John Deere Funk Transmission

NVX9060 GENERAL SPECIFICATIONS

FUEL CAPACITY 110 gallons(416 L) DEF CAPACITY 10 gallons(38 L)

HYDRAULIC RESERVOIR CAPACITY 40 gallons(150 L)

COOLANT CAPACITY 6 gallons(23 L)

GENERATOR OIL CAPACITY 6 gallons(23 L)

AIR TANK CAPACITY (RAIL BRAKES) 100 gallon(378 L)

AIR TANK CAPACITY (VEHICLE BRAKES) 5 gallon(19 L) WHEEL BASE 213” (5410 mm) WIDTH 120” (3048 mm) HEIGHT 143.5” (3645 mm)

LENGTH 342.5” (8700 mm)

GROUND CLEARANCE 9” (228.5 mm) WEIGHT 117,000 lbs.(53,070 kg)

AIR FILTER Dry replacement element

OIL & FUEL FILTERS Replacement element

SPEED RANGE 0 to 10 mph/16 km/h
